| PRODUCT SPECIFICATIONS | |
|---|---|
| Model: | MSI B650M Bomber WiFi |
| CPU Socket: | AMD Ryzen 9000/ 8000/ 7000 Processors for Socket AM5 |
| Chipset: | AMD B650 |
| Memory Support: | 2 x DDR5 DIMM slots, up to 128GB, Dual Channel |
| Graphics Interface: | 1 x PCIe 4.0 x16 Slot |
| Storage: | 2 x M.2 (PCIe Gen4), 4 x SATA III 6Gb/s |
| Audio: | Realtek ALC897 Codec, 7.1-Channel High Definition Audio |
| LAN: | 1 x Realtek 2.5G LAN |
| Wireless: | Wi-Fi 6, Bluetooth 5.3 |
| Form Factor: | Micro-ATX |

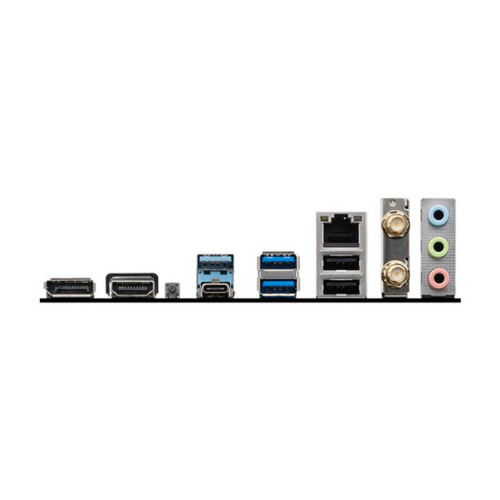

| Rear I/O Ports: | 1 x HDMI, 1 x DisplayPort, 1 x USB 3.2 Gen 2 Type-C, 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0, 1 x RJ45 LAN, 3 x Audio Jacks, 2 x Wi-Fi Antenna Connectors |
| Internal Connectors: | Front USB 3.2 Gen 1, USB 2.0, RGB/ARGB headers, CPU & System Fan headers |
| ITEM DIMENSIONS | |
| Height: | 244 mm |
| Length: | 244 mm |
| Net Weight: | 0.8 kg (1.76 lb) |
| Color: | Black |
| WARRANTY INFORMATION | |
| Warranty: | 3 Years |

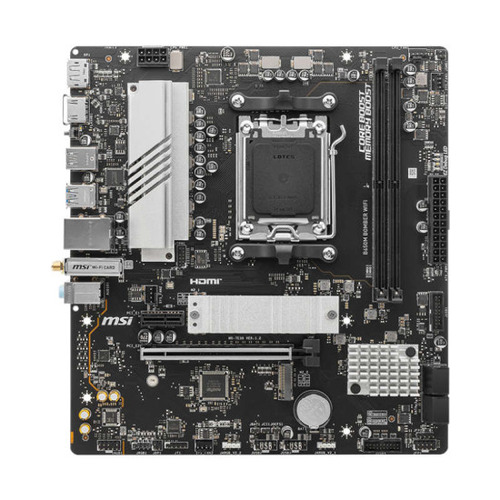

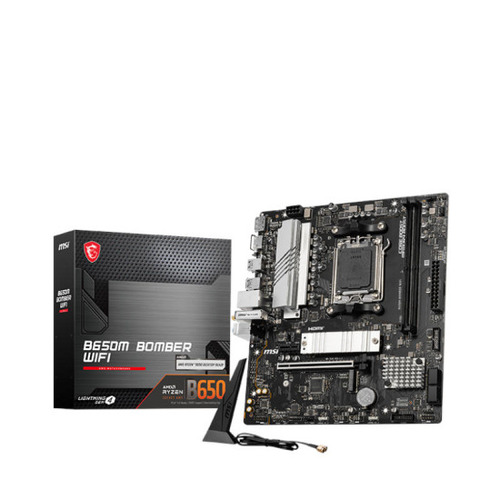

MSI B650M Bomber WiFi Motherboard – AM5, DDR5, PCIe 4.0, M.2, Wi-Fi 6, Micro-ATX
The MSI B650M Bomber WiFi Motherboard is a Micro-ATX motherboard built for AMD’s latest AM5 platform, supporting AMD Ryzen 9000/ 8000/ 7000 Processors for Socket AM5. With support for ultra-fast DDR5 memory (up to 128GB) and a PCIe 4.0 x16 slot, this board is ideal for modern gamers, power users, and builders looking for next-gen speed and performance.
Equipped with dual M.2 slots and four SATA III ports, the B650M Bomber offers versatile storage options for SSDs and HDDs. Networking is future-ready with Intel Wi-Fi 6 for wireless connectivity and 2.5G LAN for ultra-fast Ethernet speeds. Onboard audio is powered by the Realtek ALC897 codec for immersive, high-definition sound.
The board provides a wide range of I/O including USB 3.2 Gen 2 Type-C, HDMI, DisplayPort, and RGB/ARGB headers for customization. Its compact size makes it perfect for smaller cases without sacrificing performance. Whether you’re building a powerful workstation or a compact gaming rig, the MSI B650M Bomber WiFi delivers cutting-edge technology, strong durability, and excellent connectivity in one sleek motherboard.
