| PRODUCT SPECIFICATIONS | |
|---|---|
| Model: | DTECH DT‑7054B |
| Transmission Distance: | Up to 100 m (over Cat5 / Cat5e / Cat6 cable) |
| Resolution Support: | Up to 1080p @ 60Hz |
| Interface: | HDMI In / HDMI Out, RJ‑45 (Ethernet extension) |
| IR Control: | IR extension support (sender & receiver included) |
| Latency: | Low latency (suitable for video & presentations) |
| Power Supply: | DC 5V / 1A (adapter included) |
| Compatibility: | TVs, monitors, projectors, PCs, set-top boxes, AV systems |
| Plug & Play: | Yes, no driver installation required |
| Operating Temperature: | 0°C ~ 40°C |
| Material: | ABS & metal casing |
| Color: | Black |
| Package Contents: | 1 × Transmitter, 1 × Receiver, 2 × Power Adapters, 2 × IR cables, 1 × User Manual |
| ITEM DIMENSIONS | |
| Transmitter Size: | Approx. 100 × 60 × 22 mm |
| Receiver Size: | Approx. 100 × 60 × 22 mm |
| Net Weight: | Approx. 200 g (combined) |
| WARRANTY INFORMATION | |
| Warranty: | No Warranty |

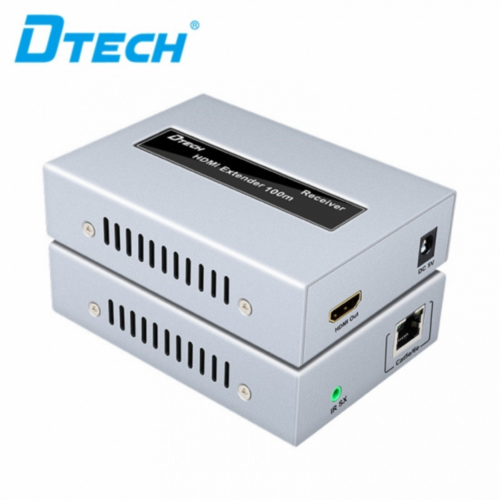

DTECH DT-7054B HDMI Extender 100M Over CAT5/5e/6 Price in bd
The DTECH DT‑7054B HDMI Extender enables long-distance transmission of HDMI signals up to 100 meters using standard Cat5, Cat5e, or Cat6 cables. It is an effective solution for extending HDMI video and audio in larger installations such as conference rooms, classrooms, or digital signage layouts.
This extender supports resolutions up to 1080p @ 60Hz with minimal latency to preserve smooth motion and presentation performance. Both transmitter and receiver units are included, each powered by their own 5V adapters. No additional drivers or software are needed — just plug in and use. A key feature is its IR control extension, allowing users to control the source device remotely from the display side using the included IR cables. The rugged construction with ABS and metal housing supports stable operation over time.
